MC740-430E - 47-Gb/s 4:1 Multiplexer

MC740-430E Description

NEL MD-01-4-43-75-482 May 8, 2002 Preliminary MC740-430E 47-Gb/s 4:1 Multiplexer The MC740-430E is an engineering sample of 47-Gb/s signal generator..

MC740-430E Applications

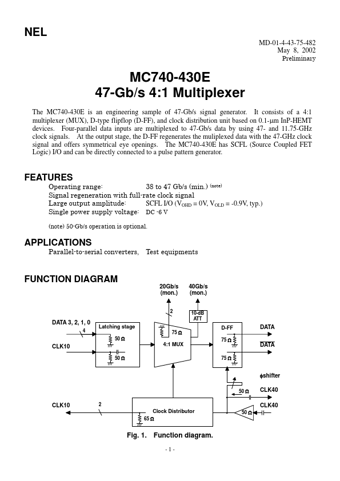

* Parallel-to-serial converters, Test equipments FUNCTION DIAGRAM 20Gb/s (mon. ) 2 40Gb/s (mon. ) DATA 3, 2, 1, 0 4 10-dB ATT Latching stage 75 Ω 50 Ω D-FF 75 Ω DATA DATA CLK10 50 Ω 4:1 MUX 75 Ω φshifter 50 Ω CLK40 CLK40 CLK10 2 Clock Distributor 65 Ω 50 Ω Fig. 1. Function diagram. -1-
