MC74 - Serial Digital Temperature Sensor

Product Overview

ON Semiconductor

📥 Download Datasheet

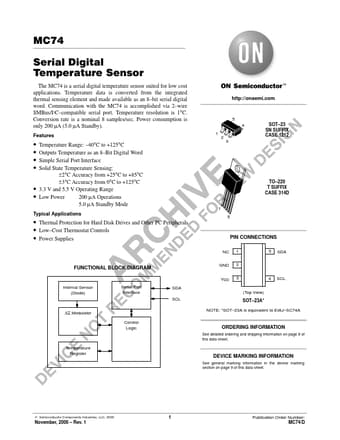

MC74 Serial Digital Temperature Sensor by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74

Datasheet Details

Part number	MC74
Manufacturer	ON Semiconductor
File Size	129.08 KB
Description	Serial Digital Temperature Sensor
Datasheet	MC74 Datasheet
Additional preview pages of the MC74 datasheet.

Product details

Features

Temperature Range:.
40°C to +125°C.
Outputs Temperature as an 8.
Bit Digital Word.
Simple Serial Port Interface.
Solid State Temperature Sensing: ±2°C Accuracy from +25°C to +85°C ±3°C Accuracy from 0°C to +125°C.
3.3 V and 5.5 V Operating Range.
Low Power 200 µA Operations 5.0 µA Standby Mode Typical.
