MC74A0 - Serial Digital Temperature Sensor

Product Overview

ON Semiconductor

📥 Download Datasheet

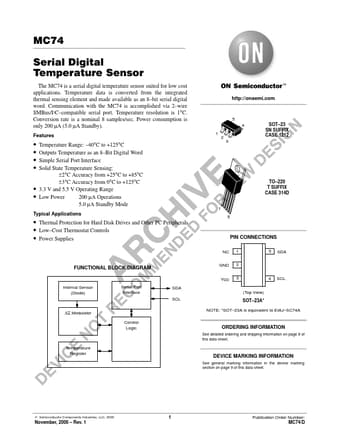

MC74A0 Serial Digital Temperature Sensor by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74A0

Datasheet Details

Part number	MC74A0
Manufacturer	ON Semiconductor
File Size	129.08 KB
Description	Serial Digital Temperature Sensor
Datasheet	MC74A0 Datasheet
Note	This datasheet PDF includes multiple part numbers: MC74A0, MC74. Please refer to the document for exact specifications by model.
Additional preview pages of the MC74A0 datasheet.

Product details

Features

Temperature Range:.
40°C to +125°C.
Outputs Temperature as an 8.
Bit Digital Word.
Simple Serial Port Interface.
Solid State Temperature Sensing: ±2°C Accuracy from +25°C to +85°C ±3°C Accuracy from 0°C to +125°C.
3.3 V and 5.5 V Operating Range.
Low Power 200 µA Operations 5.0 µA Standby Mode Typical.
