MC74A3, MC74, Serial Digital Temperature Sensor

MC74 Serial Digital Temperature Sensor The MC74 is a serial digital temperature sensor suited for low cost applications.Temperature data is convert.

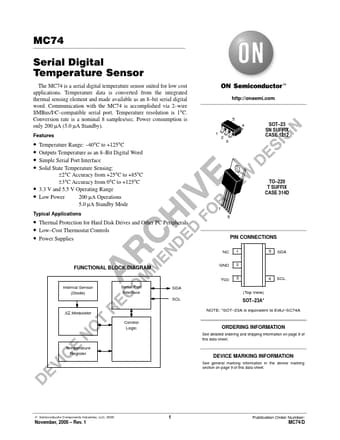

MC74-ONSemiconductor.pdf

MC74A3 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC74A3, MC74. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC74A3, MC74

Manufacturer:

ON Semiconductor ↗

File Size:

129.08 KB

Description:

Serial Digital Temperature Sensor

Note:

This datasheet PDF includes multiple part numbers: MC74A3, MC74.
Please refer to the document for exact specifications by model.

Features

* Temperature Range:
* 40°C to +125°C
* Outputs Temperature as an 8
* Bit Digital Word
* Simple Serial Port Interface
* Solid State Temperature Sensing: ±2°C Accuracy from +25°C to +85°C ±3°C Accuracy from 0°C to +125°C
* 3.3 V and 5.5 V Op

Applications

* Temperature data is converted from the integrated thermal sensing element and made available as an 8
* bit serial digital word. Communication with the MC74 is accomplished via 2
* wire SMBus/I2C
* compatible serial port. Temperature resolution is 1°C. Conversion rate is a nominal
