MM1111

2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch

MM1111 Features

* 1. Built-in 6dB amp 2. Clamp function 3. Mute function 4. Current consumption 5. Operating power supply voltage range 6. Frequency response 7. Crosstalk 5.1mA typ. 4.6~13.0V 10MHz 64dB (at 4.43MHz) Package SOP-8C (MM1118XF) SIP-8A (MM1118XS) Applications 1. TV 2. VCR 3. Other video equipment MIT

MM1111 General Description

MM1111~MM1118 Series Circuit Configuration Table Model name MM1111 MM1112 MM1113 MM1114 MM1115 MM1116 MM1117 MM1118 # of Inputs 2 2 3 3 2 2 3 3 # of Outputs 1 1 1 1 1 1 1 1 6dB amplifier No Yes No Yes No Yes No Yes Clamp circuit No No No No Yes Yes Yes Yes Power supply voltage 4.6~13.0V 8.0~13.0V .

MM1111 Datasheet (231.45 KB)

Preview of MM1111 PDF

Datasheet Details

Part number:

MM1111

Manufacturer:

ETC

File Size:

231.45 KB

Description:

2-input 1-output video switch / 3-input 1-output video switch.
MITSUMI 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch MM1111~MM1118 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch M.

📁 Related Datasheet

MM1112 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1113 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1114 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1115 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1116 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1117 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1118 2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch (ETC)

MM1104 Monolithic IC (ETC)

MM1106 System Reset (Mitsumi Electronics)

MM1108 Monolithic IC (ETC)

TAGS

MM1111 2-Input 1-Output Video Switch 3-Input 1-Output Video Switch ETC

Image Gallery

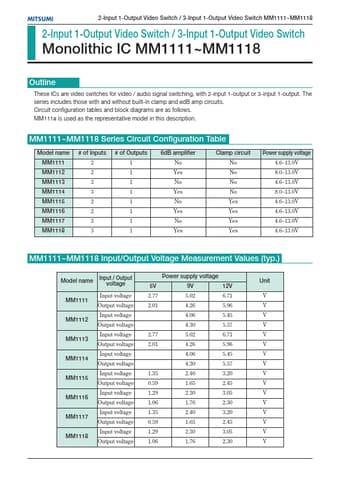

MM1111 Datasheet Preview Page 2 MM1111 Datasheet Preview Page 3
