MM1140 Datasheet, Switch, Mitsumi Electronics

MM1140 Features

• Switch 1. 2. 3. 4. Built-in mute function (mute pin : input possible) Crosstalk -70dB (at 4.43MHz) Power supply voltage 5~13V Frequency response 10MHz Package SOP-14B (MM1140XF) Applications

PDF File Details

Part number:

MM1140

Manufacturer:

Mitsumi Electronics

File Size:

127.95kb

Download:

📄 Datasheet

Description:

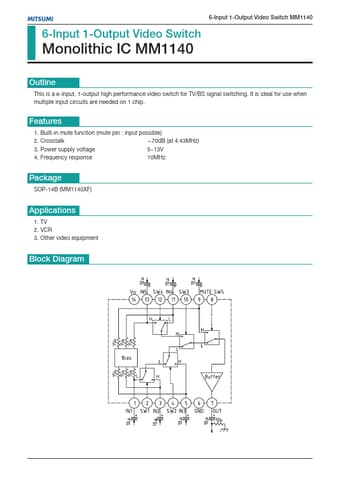

6-input 1-output video switch. Pin no. Pin name 1 IN1 Internal equivalent circuit diagram Pin no. Pin name 8 SW5 Internal equivalent circuit diagram 9 MUTE 2 SW

MM1140 Application

• Applications 1. TV 2. VCR 3. Other video equipment Block Diagram MITSUMI 6-Input 1-Output Video Switch MM1140 Pin Description Pin no. Pin name 1
