MM1108 Datasheet, Ic, ETC

MM1108 Features

  • Ic 1. 2. 3. 4. 5. 6. 7. Low current consumption 4.4mA typ. Open collector output Built-in 3V regulator handles power supply ripple Built-in capacitor for vertical sync separation Time from

PDF File Details

Part number:

MM1108

Manufacturer:

ETC

File Size:

125.96kb

Download:

📄 Datasheet

Description:

Monolithic ic. Pin no. 1 2 Pin name VCC SC Internal equivalent circuit diagram Function Power supply voltage pin. Impresses 5V. VCO integration pin

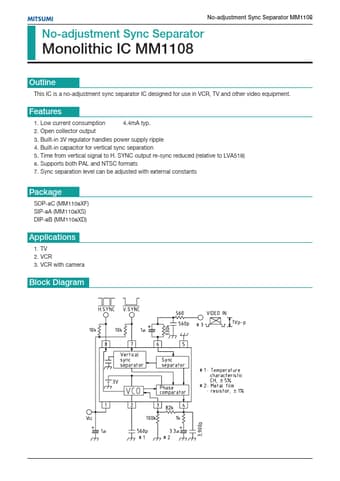

Datasheet Preview: MM1108 📥 Download PDF (125.96kb)
Page 2 of MM1108 Page 3 of MM1108

MM1108 Application

  • Applications 1. TV 2. VCR 3. VCR with camera Block Diagram MITSUMI No-adjustment Sync Separator MM1108 Pin Description Pin no. 1 2 Pin name VCC
