MMBT404A - The Small-Signal PNP Silicon Chopper Low-Power Transistor

Datasheet Summary

Description

The MMBT404A is an PNP silicon epitaxial transistor designed for application in TV tuner, frequency converter, oscillator, mixer and amplifier.

It has dynamic range and good current characteristic.

Features

  • Ø Ø High collector current IC= -300 mA Low saturation voltages VCE(sat)= -0.4 V VBE(sat)= -1.5 V High total power dissipation PT= 200 mW Excelent hFE linearity 1.
  • Collector 2.
  • Emitter 3.
  • Base SOT23 JEDEC EIAJ GOST Weight: TO-236 SC-59 ÊÒ-46 0.01g Ø Ø.

📥 Download Datasheet

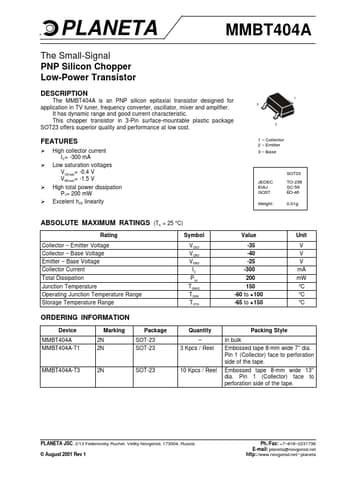

Datasheet preview – MMBT404A
