MMBT6027 Silicon programmable unijunction transistor

MMBT6027 Silicon programmable unijunction transistor (PUT′ s) in package SOT-23 0.5 max 3 2.55 max 1.4 max 1.9 3.1 max 1.2 max 1 2 Pinouts: 1- Anode, 2- Cathode, 3- Gate Ratings (T A = 25°C) Symbol VAK VGKF VGKR VGAR IT ITRM Parameter, units Anode to cathode voltage, V Gate to cathode forward voltage, V Gate to cathode reverse voltage, V Gate to anode reverse voltage, V DC forward anode current, mA Repetitive peak forward current, A 100µs Pulse width, 1% duty cycl.

MMBT6027 Datasheet (15.15 KB)

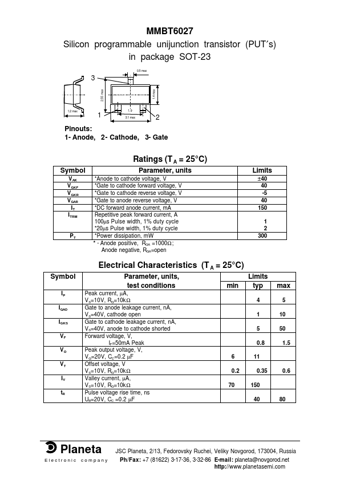

MMBT6027 Datasheet Preview — Preview of MMBT6027 PDF

Datasheet Details

Part number:

MMBT6027

Manufacturer:

ETC

File Size:

15.15 KB

Description:

Silicon programmable unijunction transistor.
