MMBT6028 Datasheet - Planeta

MMBT6028 Silicon programmable unijunction transistors

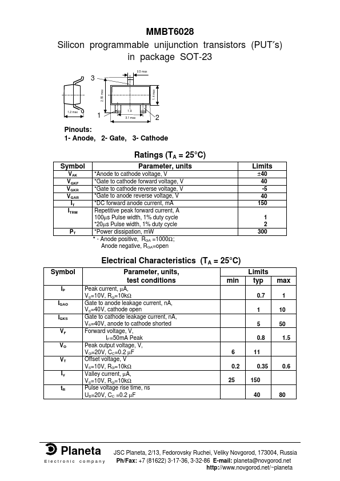

MMBT6028 Silicon programmable unijunction transistors (PUT′s) in package SOT-23 0.5 max 3 2.55 max 1.4 max 1.9 3.1 max 1.2 max 1 2 Pinouts: 1- Anode, 2- Gate, 3- Cathode Ratings (TA = 25°C) Symbol VAK VGKF VGKR VGAR IT ITRM Parameter, units Anode to cathode voltage, V Gate to cathode forward voltage, V Gate to cathode reverse voltage, V Gate to anode reverse voltage, V DC forward anode current, mA Repetitive peak forward current, A 100µs Pulse width, 1% duty cycle.

MMBT6028-Planeta.pdf

MMBT6028 Datasheet Preview — Preview of MMBT6028 PDF

Datasheet Details

Part number:

MMBT6028

Manufacturer:

Planeta

File Size:

15.00 KB

Description:

Silicon programmable unijunction transistors.
