MMBT6427LT1, Darlington Transistor

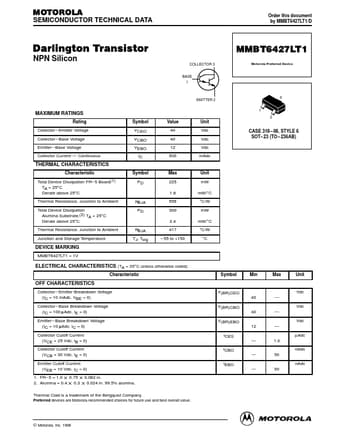

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MMBT6427LT1/D Darlington Transistor NPN Silicon COLLECTOR 3 BASE 1 MMBT6427LT1 Motoro.

datasheet Preview Page 1 from Datasheet4u.com

MMBT6427LT1_MotorolaInc.pdf

MMBT6427LT1 Datasheet Preview — Preview of MMBT6427LT1 PDF

Datasheet Details

Part number:

MMBT6427LT1

Manufacturer:

Motorola

File Size:

249.49 KB

Description:

Darlington Transistor

Features

* THICKNESS OF BASE MATERIAL. INCHES MIN MAX 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0180 0.0236 0.0350 0.0401 0.0830 0.0984 0.0177 0.0236 MILLIMETERS MIN MAX 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.45 0.60

Applications

* Surface mount board layout is a critical portion of the total design. The footprint for the semiconductor packages must be the correct size to insure proper solder connection interface between the board and the package. With the correct pad geometry, the packages will self align when subjected to a
