INCH-POUND MS27144C 17 June 2003 SUPERSEDING MS27144B 16 February 1988 DETAIL SPECIFICATION SHEET CONNECTOR, PLUG, ELECTRICAL, SOCKET CONTACT, NO. 14 AND 16 AWG, WATERPROOF This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification.
http://www.DataSheet4U.com/

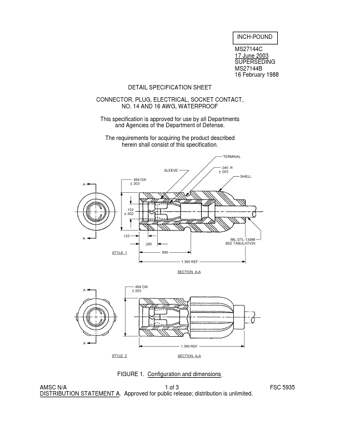

FIGURE 1. Configuration and dimensions. AMSC N/A 1 of 3 DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. FSC 5935
MS27144C
Inches .002 .003 .010 .015 .045 .125 .130
mm .05 .07 .25 .38 1.10 3.18 3.30
Inches .152 .160 .245 .494 .690 1.390
mm 3.86 4.06 6.22 12.55 17.50 35.30
MS dash no. -1 -2 -3
Reference drawing no.
MS27144C Datasheet
