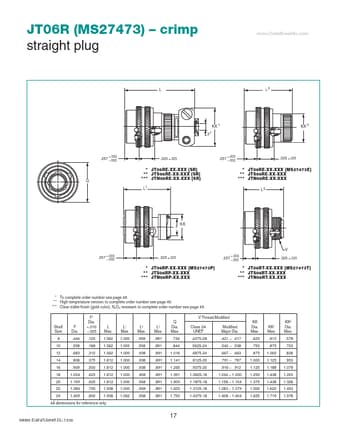

JT06R (MS27473) – crimp straight plug www.DataSheet4U.com L L2 KK 1 F1 KK 2 .257 –.002 +.003 .325 ±.025 .257 –.002 +.003 .325 ±.025 Q * JT06RE-XX-XXX (SR) ** JTS06RE-XX-XXX (SR) *** JTN06RE-XX-XXX (SR) L1 * JT06RE-XX-XXX (MS27473E) ** JTS06RE-XX-XXX *** JTN06RE-XX-XXX L3 F KK V .257 –.002 +.003 .325 ±.025 .257 –.002 +.003 .325 ±.025 * JT06RP-XX-XXX (MS27473P) ** JTS06RP-XX-XXX *** JTN06RP-XX-XXX * JT06RT-XX-XXX (MS27473T) ** JTS06RT-XX-XXX *** JTN06RT-XX-XXX * To complete order number see page 49. ** High temperature version; to complete order number see page 49. *** Clear iridite finish (gold color), N2O4 resistant; to complete order number see page 49. F1 Dia. +.010 –.025 .125 .188 .312 .375 .500 .625 .625 .750 .800 V Thread Modified L Max. 1.562 1.562 1.562 1.
