DETAIL SPECIFICATION SHEET
INCH-POUND
MS51831G 14 August 2012 SUPERSEDING MS51831F 9 March 1992
INSERT, SCREW – THREAD, LOCKED IN, KEY LOCKED, HEAVY DUTY
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and procurement specification MIL-I-45914.

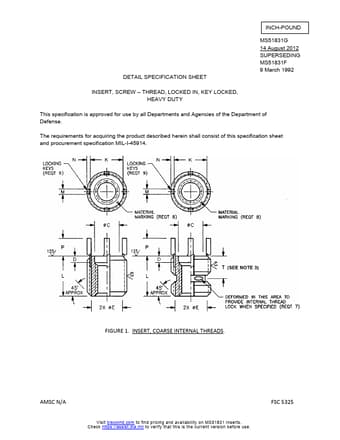

FIGURE 1. INSERT, COARSE INTERNAL THREADS.
AMSC N/A
Visit biscoind.com to find pricing and availability on MS51831 Inserts. Check https://assist.dla.mil to verify that this is the current version before use.
FSC 5325
MS51831G
DASH NO.
101 102 103 104 105 106 107 108 109 109L 110 110L 111 111L
TABLE I. COARSE INTERNAL THREADS.
INTERNAL THREAD SAE AS8879 UNJC-3B
.190-24
.250-20 .
