MS51831-204L - insert

Product Overview

Datasheet Details

Part number	MS51831-204L
Manufacturer	Military-Fasteners
File Size	879.95 KB
Description	insert
Datasheet	MS51831-204L Datasheet
Note	This datasheet PDF includes multiple part numbers: MS51831-204L, MS51831-204L-military. Please refer to the document for exact specifications by model.

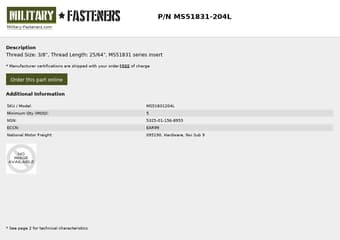

Additional preview pages of the MS51831-204L datasheet.

Product details

Description

Thread Size: 3/8", Thread Length: 25/64", MS51831 series insert Manufacturer certifications are shipped with your order FREE of charge Order this part online Additional Information SKU / Model: Minimum Qty (MOQ): NSN: ECCN: National Motor Freight: MS51831204L 5 5325-01-156-8955 EAR99 095190, Hardware, Noi Sub 9 See page 2 for technical characteristics P/N MS51831-204L Specifications Thread Class: Thread Direction: Thread Length: Length: Insert Size: Internal Thread Relief Depth:

Features

Provided: Thread Quantity Per Inch: Nominal Thread Size: Special Features: Material: Material Document And Classification: Surface Treatment: Surface Treatment Document And Classification: Style Designator: Thread Series Designator: 3b Right-hand 0.399 Inches Nominal 0.485 Inches Minimum And 0.515 Inches Maximum 0.5625-12 Unc 2a 0.060 Inches Minimum And 0.080 Inches Maximum 0.405 Inches Minimum And 0.455 Inches Maximum Individually Keyed 24 0.375 Inches Has Internal Thread Lock Steel Comp 302 O.
