OM3910NTM, (OM3910xxx / OM3911xxx) POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675

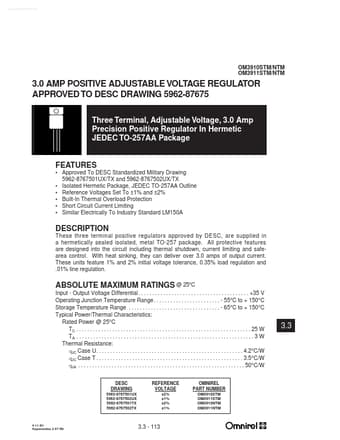

www.DataSheet4U.com OM3910STM/NTM OM3911STM/NTM 3.0 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675 Three Terminal, Ad.
These three terminal positive regulators approved by DESC, are supplied in a hermetically sealed isolated, metal TO-257 package.

datasheet Preview Page 1 from Datasheet4u.com

OM3910NTM_ETC.pdf

OM3910NTM Datasheet Preview — Preview of OM3910NTM PDF

Datasheet Details

Part number:

OM3910NTM

Manufacturer:

ETC

File Size:

65.17 KB

Description:

(OM3910xxx / OM3911xxx) POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675

Features

* Approved To DESC Standardized Military Drawing 5962-8767501UX/TX and 5962-8767502UX/TX
* Isolated Hermetic Package, JEDEC TO-257AA Outline
* Reference Voltages Set To ±1% and ±2%
* Built-In Thermal Overload Protection
* Short Circuit Current Limiting

Applications

* 1.2 - 25V Adjustable Regulator VIN ADJ. C1
* 1µF R2 5k
* Needed if device is far from filter capacitors † Optional
* improves transient response ‡ VOUT = 1.25V (1 + R2 ) R1 VOUT R1 240 + C2† 1µf VOUT‡ VIN 1µF Improving Ripple Rejection VIN ADJ. R2 365 1% VOUT 5V R1 121 1% + CL 10µf
