OM3914NKM

NEGATIVE ADJUSTABLE REGULATOR APPROVED TO DESC DRAWING 5962-87741

OM3914NKM Features

* Similar To Industry Standard LT1033 Approved To DESC Standardized Military Drawing Number 5962-8774101 Adjustable Output Voltage Built In Thermal Overload Protection Short Circuit Current Limiting Maximum Output Voltage

OM3914NKM General Description

This three terminal negative adjustable voltage regulator is designed to provide 3A with higher efficiency than conventional voltage regulators. This device is designed to operate down to 1 Volt input to output differential and the dropout voltage is fully specified as a function of load current. Su.

OM3914NKM Datasheet (461.86 KB)

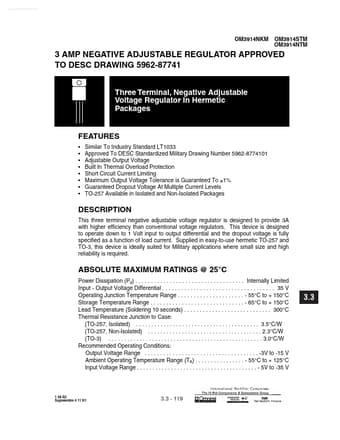

Preview of OM3914NKM PDF

Datasheet Details

Part number:

OM3914NKM

Manufacturer:

ETC

File Size:

461.86 KB

Description:

Negative adjustable regulator approved to desc drawing 5962-87741.
www.DataSheet4U.com OM3914NKM OM3914STM OM3914NTM 3 AMP NEGATIVE ADJUSTABLE REGULATOR APPROVED TO DESC DRAWING 5962-87741 Three Terminal, Negative .
