OMC507

FULL-FEATURED CIRCUIT BOARD ASSEMBLY FOR DIRECT DRIVE OF 3-PHASE BRUSHLESS DC MOTORS

OMC507 Features

* Fully integrated 3-Phase Brushless DC Motor Control System 5A Average Phase Current (10A peak) with 30V Maximum Bus Voltage Onboard Current Sense Resistor Direction and Torque Control Tachometer Output Fits Inside Motor Housing APPLICATION

OMC507 General Description

The OMC507 is a three phase brushless DC Motor Controller Driver. The OMC507 is a 2 quadrant controller and provides control of motor current (torque) in proportion to the input current command. The versatility of the OMC507 allows the user to either provide an analog or a TTL PWM current command si.

OMC507 Datasheet (118.50 KB)

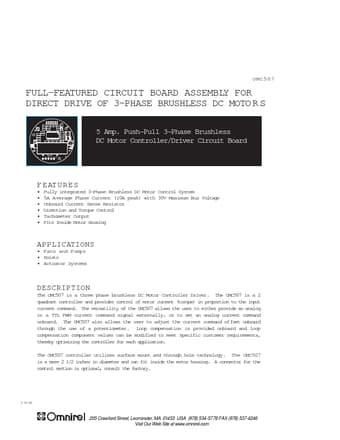

Preview of OMC507 PDF

Datasheet Details

Part number:

OMC507

Manufacturer:

ETC

File Size:

118.50 KB

Description:

Full-featured circuit board assembly for direct drive of 3-phase brushless dc motors.
