256K Static RAM 32K x 8-Bit

PDM41256 Features

* s High-speed access times Com’l: 7, 8, 10, 12, and 15 ns Ind’l: 8, 10, 12, and 15 ns s Low power operation (typical) - PDM41256SA Active: 400 mW Standby: 150 mW - PDM41256LA Active: 350 mW Standby: 25 mW s Single +5V (±10%) power supply s TTL-compatible inputs and outputs s Packages Plastic SOJ (300

PDM41256 General Description

The PDM41256 is a high-performance CMOS static RAM organized as 32,768 x 8 bits. This product is produced in Paradigm’s proprietary CMOS technology which offers the designer the highest speed parts. Writing to this device is accomplished when the write enable (WE) and the chip enable (CE) inputs are.

PDM41256 Datasheet (73.29 KB)

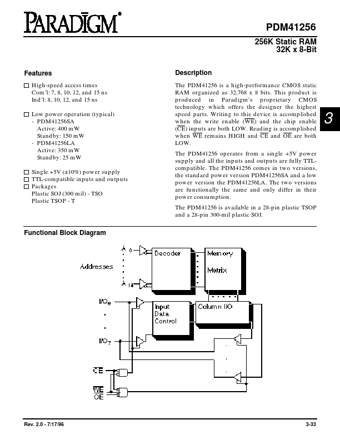

PDM41256 Datasheet Preview — Preview of PDM41256 PDF

Datasheet Details

Part number:

PDM41256

Manufacturer:

ETC

File Size:

73.29 KB

Description:

256k static ram 32k x 8-bit.
