PDM41024 Datasheet - Paradigm

PDM41024 - 1 Megabit Static RAM 128K x 8-Bit

The PDM41024 is a high-performance CMOS static RAM organized as 131,072 x 8 bits.

Writing is accomplished when the write enable (WE) and the chip enable (CE1) inputs are both LOW and CE2 is HIGH.

Reading is accomplished when WE and CE2 remain HIGH and CE1 and OE are both LOW.

The PDM41024 operates f

PDM41024_Paradigm.pdf

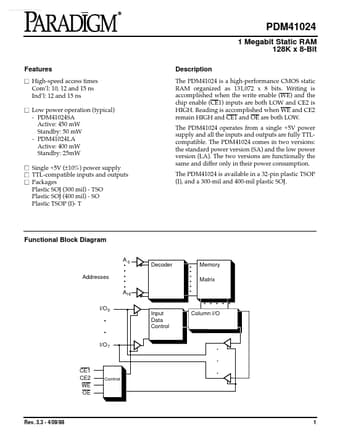

Preview of PDM41024 PDF
PDM41024 Datasheet Preview Page 2 PDM41024 Datasheet Preview Page 3

Datasheet Details

Part number:

PDM41024

Manufacturer:

Paradigm

File Size:

270.99 KB

Description:

1 megabit static ram 128k x 8-bit.
