PI74LPT244 Datasheet - ETC

Fast CMOS 3.3V 8-Bit Buffer/Line Driver

PI74LPT244 Features

* Compatible with LCX™ and LVT™ families of products

* Supports 5V Tolerant Mixed Signal Mode Operation

* Input can be 3V or 5V

* Output can be 3V or connected to 5V bus

* Advanced Low Power CMOS Operation

* Excellent output drive capability: Balanced

PI74LPT244 General Description

Pericom Semiconductor’s PI74LPT244 is an 8-bit buffer/line driver designed for driving high capacitive memory loads. With its balanced-drive characteristics, this high-speed, low power device provides lower ground bounce, transmission line matching of signals, fewer line reflections and lower EMI an.

PI74LPT244 Datasheet (562.18 KB)

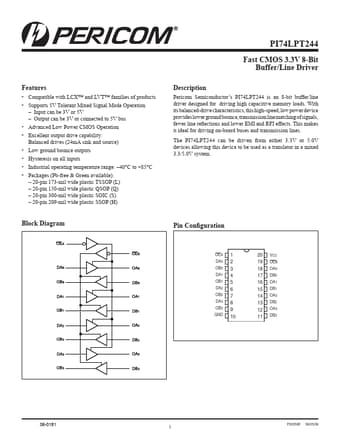

PI74LPT244 Datasheet Preview — Preview of PI74LPT244 PDF

Datasheet Details

Part number:

PI74LPT244

Manufacturer:

ETC

File Size:

562.18 KB

Description:

Fast cmos 3.3v 8-bit buffer/line driver.
