PI74LPT541 - Fast CMOS 3.3V 8-Bit Buffer/Line Driver

Name: PI74LPT541
SKU: PI74LPT541-41182

Pericom Semiconductor Corporation

📥 Download Datasheet

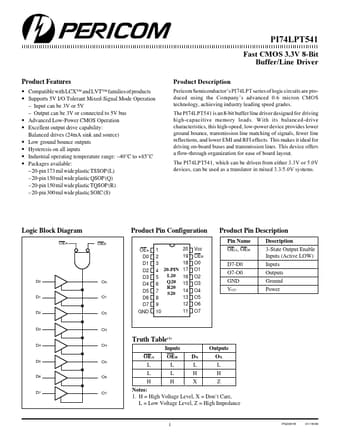

PI74LPT541 Datasheet Preview — Preview of PI74LPT541 PDF

Datasheet Details

Part number	PI74LPT541
Manufacturer	Pericom Semiconductor Corporation
File Size	86.07 KB
Description	Fast CMOS 3.3V 8-Bit Buffer/Line Driver
Datasheet	PI74LPT541_PericomSemiconductorCorporation.pdf

PI74LPT541 Product details

Description

Pericom Semiconductors PI74LPT series of logic circuits are produced using the Companys advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

Features

Compatible with LCX™ and LVT™ families of products.
Supports 5V I/O Tolerant Mixed-Signal Mode Operation.
Input can be 3V or 5V.
Output can be 3V or connected to 5V bus.
Advanced Low-Power CMOS Operation.
Excellent output drive capability: Balanced drives (24mA sink and source).
Low ground bounce outputs.
Hysteresis on all inputs.
Industrial operating temperature range:.
40°C to +85°C.
Packages ava.
