RS-545PH-5025 Carbon Brush Motor

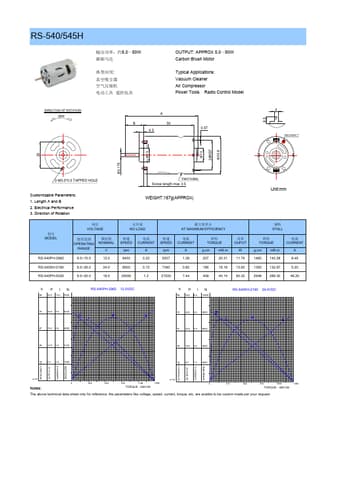

RS-540/545H ：5.0～50W : OUTPUT: APPROX 5.0～50W Carbon Brush Motor Typical Applications: Vacuum Cleaner Air Compressor Power Tools Radio Control Model DIRECTION OF ROTATION ccw A B 50 4.5 0.5T 4 RED MARK"+" 25 Φ3.175 Φ13 Φ13 28REF Φ35.8 6.5 2-M3.0 0.5 TAPPED HOLE Customizable Parameters: 1. Length A and B 2. Electrical Performance 3. Direction of Rotation Vent holes Screw length max 3.5 WEIGHT:167g(APPROX) Unit:mm MODEL RS-540PH-2962 RS-545SH-2190 RS-545PH-5025 VOLTAGE NO .

RS-540H-ETC.pdf

RS-545PH-5025 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS-545PH-5025, RS-540H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS-545PH-5025, RS-540H

Manufacturer:

ETC

File Size:

98.19 KB

Description:

Carbon brush motor.

Note:

This datasheet PDF includes multiple part numbers: RS-545PH-5025, RS-540H.
Please refer to the document for exact specifications by model.
