RS-545SH-2190, RS-540H Datasheet - ETC

RS-545SH-2190 - Carbon Brush Motor

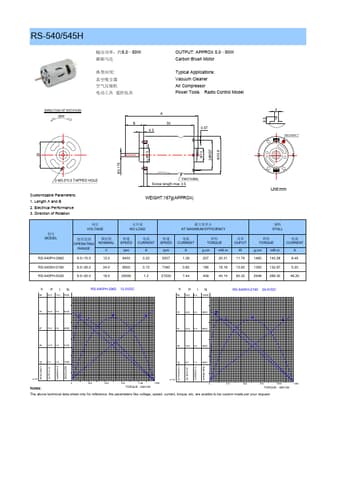

RS-540/545H :5.0~50W : OUTPUT: APPROX 5.0~50W Carbon Brush Motor Typical Applications: Vacuum Cleaner Air Compressor Power Tools Radio Control Model DIRECTION OF ROTATION ccw A B 50 4.5 0.5T 4 RED MARK"+" 25 Φ3.175 Φ13 Φ13 28REF Φ35.8 6.5 2-M3.0 0.5 TAPPED HOLE Customizable Parameters: 1.

Length A and B 2.

Electrical Performance 3.

Direction of Rotation Vent holes Screw length max 3.5 WEIGHT:167g(APPROX) Unit:mm MODEL RS-540PH-2962 RS-545SH-2190 RS-545PH-5025 VOLTAGE NO
