S3528WH-EA Datasheet - ETC

S3528WH-EA - 3528 Size Flash White Color SMD Type LED

The document describes the specification of 3528 size, flash white color SMD type LED.

Chip LEDs, or SMD type LEDs, are designed for automatic surface mounting process of ordinary electronic equipments.

Some major applications include office electronic equipments, telecommunication equipments and ho

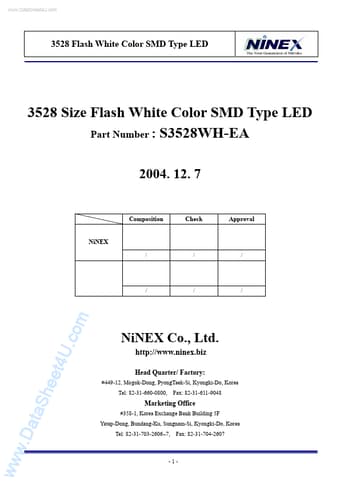

www.DataSheet4U.com 3528 Flash White Color SMD Type LED 3528 Size Flash White Color SMD Type LED Part Number : S3528WH-EA 2004.

12.

7 Composition Check Approval NiNEX / / / / / / ww w.D ata Sh eet 4U .co m NiNEX Co., Ltd.

http://www.ninex.biz Head Quarter/ Factory: #449-12, Mogok-Dong, PyongTaek-Si, Kyongki-Do, Korea Tel: 82-31-660-0800, Fax: 82-31-611-9048 Marketing Office #358-1, Korea Exchange Bank Building 5F Yatap-Dong, Bundang-Ku, Sungnam-Si, Kyongki-Do, Korea Tel: 82-31-703-2606~

S3528WH-EA Features

* z Size : 3.5 x 2.8 x 1.8 mm (L×W×H)

* SMD(Surface-Mount Device) type z Encapsulating Epoxy Resin : Phosphor dispersed water clear type z Viewing Angle Φ1/2 : 120˚ z Color Coordinates: x=0.29~0.35, y=0.26~0.39 according to CIE 1931, at If= 60mA z Color Mixing: AlInGaN based Blue LED Chip and

S3528WH-EA_ETC.pdf

Preview of S3528WH-EA PDF
S3528WH-EA Datasheet Preview Page 2 S3528WH-EA Datasheet Preview Page 3

Datasheet Details

Part number:

S3528WH-EA

Manufacturer:

ETC

File Size:

566.18 KB

Description:

3528 size flash white color smd type led.
