S3526

3-CHANNEL SECONDARY SUPERVISOR

S3526 Features

* Over/Under-voltage protection

* Over-current protection

* Additional protection input

* Fault protection output with open drain output stage

* Open drain power good output signal for power good input

* 300ms power good delay

* 75ms delay for UV/OC protection

* 38ms

S3526 General Description

UTC S3526 is used for switching power supply system. UTC S3526 provides protection functions, over-voltage protection, over-current protection, under-voltage protection and power good signal generating. OVP/UVP (Over-Voltage/Under-Voltage Protection) monitors triple 12V to protect our power supply a.

S3526 Datasheet (301.89 KB)

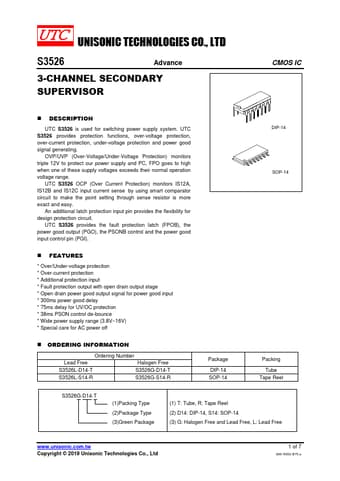

Preview of S3526 PDF

Datasheet Details

Part number:

S3526

Manufacturer:

UTC

File Size:

301.89 KB

Description:

3-channel secondary supervisor.
