S3515 Datasheet - UTC

PC POWER SUPPLY SUPERVISORS

S3515 Features

* Over/Under-Voltage Protection for 3.3V, 5V, and Two 12V

* Over-Current Protection for 3.3V, 5V, and Two 12V

* PGO and FPO pins with Open Drain Output Stage

* 300mS Power Good Delay from PGI to PGO

* 75mS Delay for 3.3V, 5V and 12V Power Turn on

* 2.8mS Delay for PSON Contro

S3515 General Description

The UTC S3515 is specially designed for switching power supply system. It provides over-voltage protection, over-current protection, under-voltage protection, on/off control and power good signal generating. OVP/UVP (Over/Under-Voltage Protection) monitors 3.3V, 5V and double 12V to protect our powe.

S3515 Datasheet (192.82 KB)

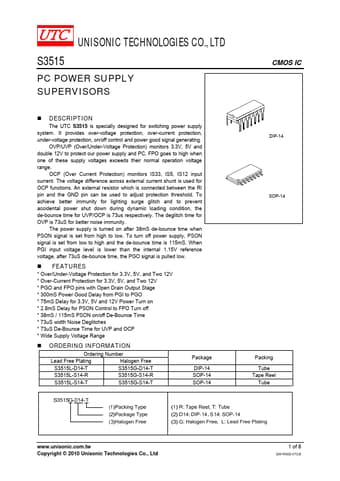

S3515 Datasheet Preview — Preview of S3515 PDF

Datasheet Details

Part number:

S3515

Manufacturer:

UTC

File Size:

192.82 KB

Description:

Pc power supply supervisors.
