Part number:

SA105

Manufacturer:

ETC

File Size:

160.41 KB

Description:

Opto-switch.

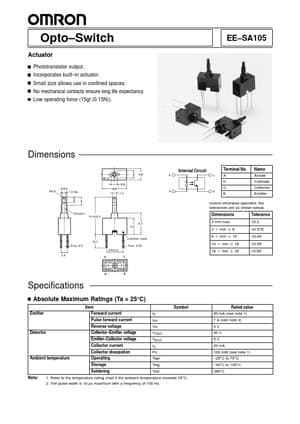

SA105, Opto-Switch

Opto Switch Actuator Phototransistor output.

Incorporates built in actuator.

Small size allows use in confined spaces.

No mechanical contacts ensure long life expectancy.

Low operating force (15gf (0.15N)).

EE SA105 Dimensions Internal Circuit K C R0.6 1.4 dia.

1.4 A E Terminal No.

A K C E Name Anode Cathode Collector Emitter Unless otherwise specified, the tolerances are as shown below.

Actuator 14.2±0.3 8.2 6.2 Dimensions 3 mm max.

3 t mm v 6 6 t mm v 10 10 t
