SDPB40F2C Oval LED Lamp

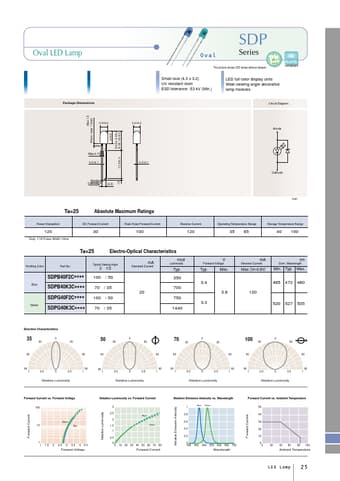

Oval LED Lamp Package Dimensions 4.3±0.2 3.2±0.2 SDP Oval Series This picture shows LED lamps without stopper. RoHS compliant Small oval (4.3 x 3.2) UV resistant resin ESD tolerance: f3 kV (Min.) LED full color display units Wide viewing angle decorative lamp modules Circuit Diagram Anode Max.1.5 Resin: max. 1.5mm 6±0.2 100 /50 :9.4±0.5 70 /35 :9.9±0.5 Max.0.75 0.5±0.1 Anode Cathode (2.5) (1) 17.3±0.3 0.5±0.1 Cathode Ta=25 Absolute Maximum Ratings Unit Power Dissipation 12.

SDPB40F2C Datasheet (47.39 KB)

SDPB40F2C Datasheet Preview — Preview of SDPB40F2C PDF

Datasheet Details

Part number:

SDPB40F2C

Manufacturer:

ETC

File Size:

47.39 KB

Description:

Oval led lamp.
