SEN-0002H - CURRENT AMPLIFIER

SEN-0002H Description

SENSITRON SEMICONDUCTOR PART NUMBER: SEN-0002H Rev A SEN-0002H CURRENT AMPLIFIER .
Supply voltage range Input voltage range Storage temperature range Power dissipation, TA = 25 C Lead temperature (10 seconds) Thermal resistance (jnct.

SEN-0002H Features

* Replacement for industry standard LH0002
* Available as DSCC 7801301XX

SEN-0002H Applications

* Line Driver
* 30 MHz buffer
* D/A conversion
* Precision current source Symbol VS Value ±22 ±22 -65 to 150 600 300 40 175 Units V V 0 C mW 0 C 0 C/W 0 PD ΘJC TJ C Electrical Characteristics -55oC < TA < 125oC unless otherwise specified. Test Conditions Symbol

📥 Download Datasheet

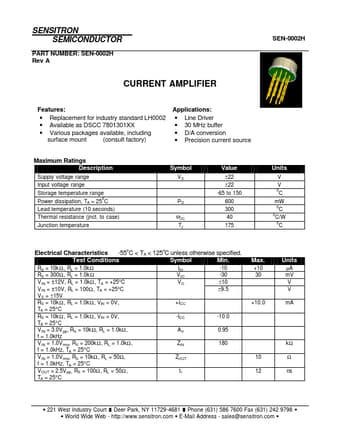

Preview of SEN-0002H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SEN-0002H
Manufacturer
ETC
File Size
70.68 KB
Datasheet
SEN-0002H_ETC.pdf
Description
CURRENT AMPLIFIER
