SEN0019 Datasheet - ETC

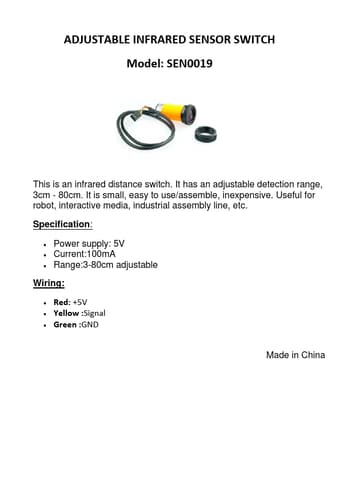

SEN0019 ADJUSTABLE INFRAREDSENSOR SWITCH

ADJUSTABLE INFRARED SENSOR SWITCH Model: SEN0019 This is an infrared distance switch. It has an adjustable detection range, 3cm - 80cm. It is small, easy to use/assemble, inexpensive. Useful for robot, interactive media, industrial assembly line, etc. Specification: Power supply: 5V Current:100mA Range:3-80cm adjustable Wiring: Red: +5V Yellow :Signal Green :GND Made in China http://www.Datasheet4U.com .

SEN0019-ETC.pdf

SEN0019 Datasheet Preview — Preview of SEN0019 PDF

Datasheet Details

Part number:

SEN0019

Manufacturer:

ETC

File Size:

148.82 KB

Description:

Adjustable infraredsensor switch.
