SF1003G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers

This page provides the datasheet information for the SF1003G, a member of the SF1001G (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers family.

Features

  • Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Case: Molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Leads solderable per MIL-STD202, Method 208 guaranteed Polarity: As marked High temperature soldering guaranteed: o 260 C/10 seconds .16”,(4.06mm) from case. Weight: 2.24 grams PIN 1 PIN 3 Positive CT CASE PIN 2 Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at.

📥 Download Datasheet

Datasheet preview – SF1003G

Datasheet Details

Part number SF1003G
Manufacturer Unknown Manufacturer
File Size 94.99 KB
Description (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
Datasheet download datasheet SF1003G Datasheet
Additional preview pages of the SF1003G datasheet.

📁 Similar Datasheet

  • SF1003G - 10.0 AMPS. Glass Passivated Super Fast Rectifiers (Taiwan Semiconductor)
  • SF1003G - 10.0AMP. Glass Passivated Super Fast Rectifiers (LGE)
  • SF1003 - SAW Filter (MTRONPTI)
  • SF1003 - (SF1001 - SF1007) VOLTAGE - 50 TO 600 VOLTS CURRENT - 10 AMPERES (Gaomi Xinghe Electronics)
  • SF1003CT - SUPERFAST RECOVERY RECTIFIER (PIC)
  • SF1003CT - RECTIFIER (YEASHIN)
  • SF1001 - SAW Filter (MTRONPTI)
  • SF1001 - (SF1001 - SF1007) VOLTAGE - 50 TO 600 VOLTS CURRENT - 10 AMPERES (Gaomi Xinghe Electronics)
  • SF1001CT - SUPERFAST RECOVERY RECTIFIER (PIC)
  • SF1001CT - RECTIFIER (YEASHIN)
Other Datasheets by ETC
  • SF1001G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1002G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1004G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1005G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1006G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1007G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF1008G - (SF1001G - SF1008G) 10.0 AMPS. Glass Passivated Super Fast Rectifiers
  • SF137 - Silicon Transistor

Full PDF Text Transcription

Click to expand full text

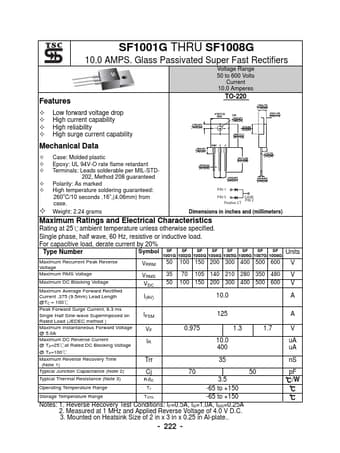

SF1001G THRU SF1008G 10.0 AMPS. Glass Passivated Super Fast Rectifiers Voltage Range 50 to 600 Volts Current 10.0 Amperes Features Low forward voltage drop High current capability High reliability High surge current capability TO-220 Mechanical Data Case: Molded plastic Epoxy: UL 94V-O rate flame retardant Terminals: Leads solderable per MIL-STD202, Method 208 guaranteed Polarity: As marked High temperature soldering guaranteed: o 260 C/10 seconds .16”,(4.06mm) from case. Weight: 2.24 grams PIN 1 PIN 3 Positive CT CASE PIN 2 Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
