SMT4004 Distributed Power Hot-Swap Controller

📥 Download Datasheet  Datasheet Preview Page 1

Description

SUMMIT MICROELECTRONICS, Inc.Distributed Power Hot-Swap Controller SMT4004 .
The SMT4004 is a fully integrated programmable voltage manager IC, providing supervisory functions and tracking control for up to four independent pow.

📥 Download Datasheet

Preview of SMT4004 PDF

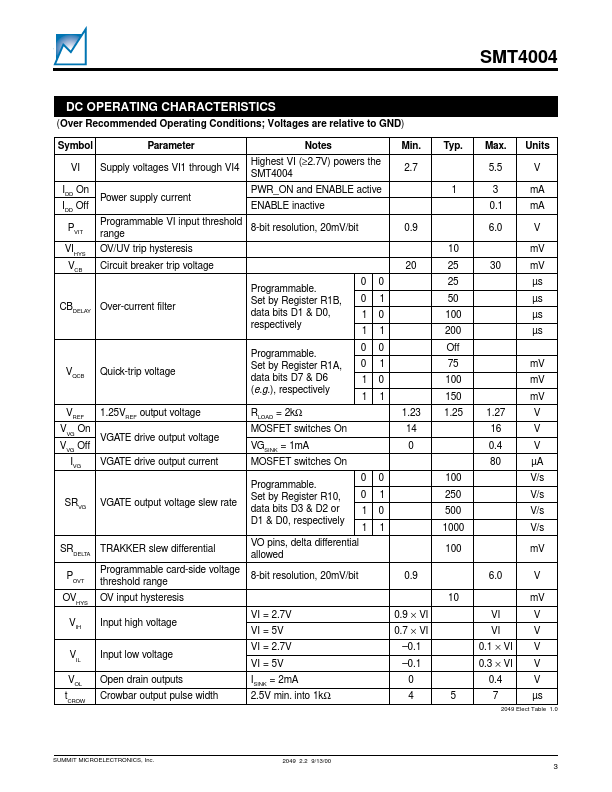

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SMT4004
Manufacturer
ETC
File Size
480.59 KB
Datasheet
SMT4004_ETC.pdf
Description
Distributed Power Hot-Swap Controller

Features

* l Programmable Voltage and Current Monitoring l Programmable Watchdog and Longdog Timers w Monitors 4 independent supplies w Programmable Host-side Under- and OverVoltage Thresholds w Programmable Card-side Under-Voltage Monitors w Programmable Card-side Circuit Breaker Delay and QuickTrip™ Thresho

Applications

* a 10µF capacitor should be connected to his pin. VGG_CAP
* This pin should be tied to a capacitor to be charged by the charge pump. The capacitor should be of sufficient size so as to provide current to the VGATE outputs under varying load conditions. PGND
* Power ground DGND
