TA1101B Datasheet - ETC

Digital Audio Amplifier using Digital Power Processing

TA1101B Features

* !"Class-T architecture !"Single Supply Operation !"“Audiophile” Quality Sound !"0.04% THD+N @ 9W, 4Ω !"0.18% IHF-IM @ 1W, 4Ω !"6W @ 8Ω, 0.1% THD+N !"11W @ 4Ω, 0.1% THD+N !"High Power !"10W @ 8Ω, 10% THD+N !"15W @ 4Ω, 10% THD+N !"High Efficiency !"88% @ 10W, 8Ω !"81% @ 15W, 4Ω !"Dynamic Range = 102 d

TA1101B General Description

The TA1101B is a 10W continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath’s proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. Applications !"Computer/PC Mult.

TA1101B Datasheet (202.38 KB)

Rating: 1 ★ (7 votes)

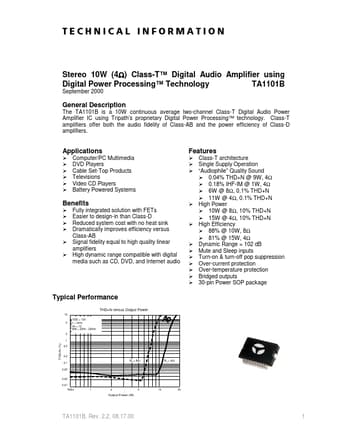

TA1101B Datasheet Preview — Preview of TA1101B PDF

Datasheet Details

Part number:

TA1101B

Manufacturer:

ETC

File Size:

202.38 KB

Description:

Digital audio amplifier using digital power processing.
TECHNICAL INFORMATION Stereo 10W (4Ω) Class-T™ Digital Audio Amplifier using Digital Power Processing™ Technology TA1101B September 2000 General Des.
