TA2024 - Digital Audio Amplifier using Digital Power Processing

Datasheet Summary

Description

The TA2024 is a 10W/ch continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath’s proprietary Digital Power Processing™ technology.

Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers.

Features

  • ¾Class-T architecture ¾Single Supply Operation ¾“Audiophile” Quality Sound ¾0.04% THD+N @ 9W, 4Ω ¾0.18% IHF-IM @ 1W, 4Ω ¾6W @ 8Ω, 0.1% THD+N ¾11W @ 4Ω, 0.1% THD+N ¾High Power ¾10W @ 8Ω, 10% THD+N ¾15W @ 4Ω, 10% THD+N ¾High Efficiency ¾88% @ 10W, 8Ω ¾81% @ 15W, 4Ω ¾Dynamic Range = 102 dB ¾Mute and Sleep inputs ¾Turn-on & turn-off pop suppression ¾Over-current protection ¾Over-temperature protection ¾Bridged outputs ¾36-pin Power SOP package Benefits ¾Fully integrated solutio.

📥 Download Datasheet

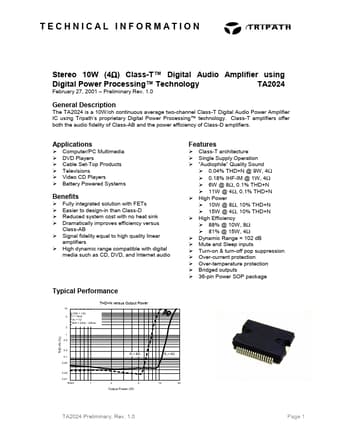

Datasheet preview – TA2024

Datasheet Details

Part number TA2024
Manufacturer ETC
File Size 467.48 KB
Description Digital Audio Amplifier using Digital Power Processing
Datasheet download datasheet TA2024 Datasheet
Additional preview pages of the TA2024 datasheet.
