TA2020-020 Datasheet - ETC

TA2020-020 Stereo 20W Class-T Digital Audio Amplifier using Digital Power Processing

The TA2020-020 is a 20W continuous average two-channel Class-T Digital Audio Power TM Amplifier IC using Tripath’s proprietary Digital Power Processing technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. Applications ¾DVD Players.

TA2020-020 Features

* ¾Class-T architecture ¾Single Supply Operation ¾“Audiophile” Quality Sound ¾0.03% THD+N @ 10W 4Ω ¾0.1% THD+N @12W 4Ω ¾0.18% IHF-IM @ 1W 4Ω ¾High Power ¾13W @ 8Ω, 10% THD+N ¾23W @ 4Ω, 10% THD+N ¾38W EIAJ

* VDD=14.4V @ 4Ω

* saturated square wave output Benefits ¾Fully integrated solu

TA2020-020_ETC.pdf

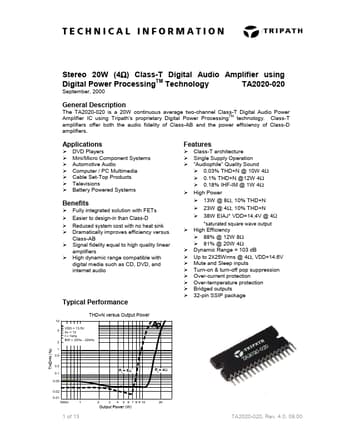

Preview of TA2020-020 PDF
TA2020-020 Datasheet Preview Page 2 TA2020-020 Datasheet Preview Page 3

Datasheet Details

Part number:

TA2020-020

Manufacturer:

ETC

File Size:

293.63 KB

Description:

Stereo 20w class-t digital audio amplifier using digital power processing.
