TM1629 - LED Control Driver

Datasheet Summary

Description

I/O serial data at rising edge of clock, starting from low order .can use with DOUT to DIO On the rising edge of the clock output serial data, from a low starting.

With DIN shorted for DIO to use Initialize serial port at rising/falling edge, and then wait for receiving command.

Features

  • Low power consumption CMOS workmanship Display mode（16segment×8positions） Key scanning（8×4bit） Luminance adjustment circuit (8-level adjustable duty cycle) Serial port (CLK, STB, DIN DOUT) Oscillation mode: built-in RC oscillation（450KHz+5%） Built-in power-on reset circuit Packaging:QFP44 Pin definitions definitions 43 GRID1 42 GRID2 40 GRID3 39 GRID4 37 GRID5 36 GRID6 34 GRID7 33 GRID8 32 VSS 31 VDD 30 SEG16 29 SEG15 28 SEG14 27 SEG13 26 SEG12 25 SEG11 24 SEG10 23 SEG9 NC 13 SEG1/KS1 14 SEG2/K.

📥 Download Datasheet

Datasheet preview – TM1629

Datasheet Details

Part number TM1629
Manufacturer ETC
File Size 520.95 KB
Description LED Control Driver
Datasheet download datasheet TM1629 Datasheet
Additional preview pages of the TM1629 datasheet.

📁 Similar Datasheet

  • TM1629 - LED drive control circuit dedicated (Titan Micro)
  • TM1629A - LED drive control circuit dedicated (Titan Micro)
  • TM1629B - LED drivers control (Titan Micro)
  • TM1629C - LED drive control circuit dedicated (Titan Micro)
  • TM1621 - 32 x 4 LCD Driver (Titan Micro)
  • TM1623 - LED Driver (Titan Micro)
  • TM1623xx - LED Driver (Titan Micro)
  • TM1624 - Dedicated LED Driver Controller (Titan Micro)
  • TM1626A - LED drive control circuit dedicated (Titan Micro)
  • TM1626B - LED drive control circuit dedicated (Titan Micro)
Other Datasheets by ETC
  • TM1629A - LED drive control circuit dedicated
  • TM1629C - LED drive control circuit dedicated
  • TM1629D - LED drive control circuit dedicated
  • TM1620 - LED drive control circuit dedicated
  • TM1620B - LED Driver
  • TM1622 - 32 x 8 LCD driver ASIC
  • TM1624 - Dedicated LED Driver Controller
  • TM1626A - LED drive control circuit dedicated

Full PDF Text Transcription

Click to expand full text

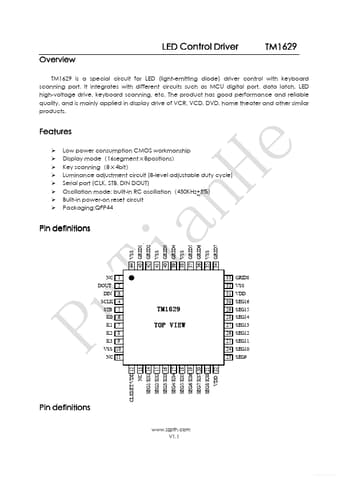

LED Control Driver Overview TM1629 TM1629 is a special circuit for LED (light-emitting diode) driver control with keyboard scanning port. It integrates with different circuits such as MCU digital port, data latch, LED high-voltage drive, keyboard scanning, etc. The product has good performance and reliable quality, and is mainly applied in display drive of VCR, VCD, DVD, home theater and other similar products.
