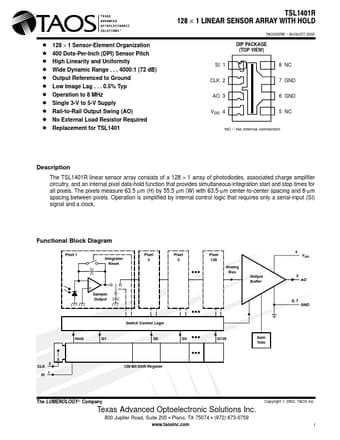

TSL1401R, 128 1 LINEAR SENSOR ARRAY WITH HOLD
The TSL1401R linear sensor array consists of a 128 × 1 array of photodiodes, associated charge amplifier circuitry, and an internal pixel data-hold function that provides simultaneous-integration start and stop times for all pixels.
The pixels measure 63.5 µm (H) by 55.5 µm (W) with 63.5-µm center-t
t TSL1401R 128 × 1 LINEAR SENSOR ARRAY WITH HOLD t TAOS035B AUGUST 2002 D D D D D D D D D D D 128 × 1 Sensor-Element Organization 400 Dots-Per-Inch (DPI) Sensor Pitch High Linearity and Uniformity Wide Dynamic Range .
.
.
4000:1 (72 dB) Output Referenced to Ground Low Image Lag .
.
.
0.5% Typ Operation to 8 MHz Single 3-V to 5-V Supply Rail-to-Rail Output Swing (AO) No External Load Resistor Required Replacement for TSL1401 DIP PACKAGE (TOP VIEW) SI 1 CLK 2 AO 3 VDD 4 8 NC 7 GND
TSL1401R Features
* followed by a dark condition: IL + V out (IL)
