768 x 1 linear sensor array with hold.

TSL1406R, 768 x 1 LINEAR SENSOR ARRAY WITH HOLD

The TSL1406R is a 400 dots-per-inch (DPI) linear sensor array consisting of two 384-pixel sections, each with its own output.

The sections are aligned to form a contiguous 768 × 1 pixel array.

The device incorporates a pixel data-hold function that provides simultaneous integration-start and integra

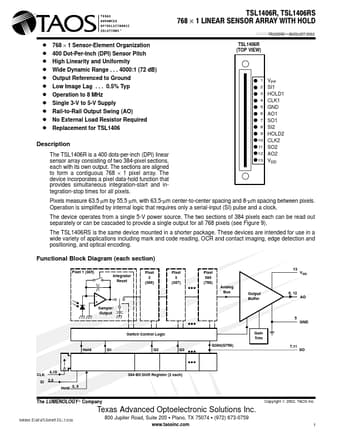

t TSL1406R, TSL1406RS 768 × 1 LINEAR SENSOR ARRAY WITH HOLD t www.DataSheet4U.com TAOS042 AUGUST 2002 TSL1406R (TOP VIEW) D D D D D D D D D D D 768 × 1 Sensor-Element Organization 400 Dot-Per-Inch (DPI) Sensor Pitch High Linearity and Uniformity Wide Dynamic Range .

.

.

4000:1 (72 dB) Output Referenced to Ground Low Image Lag .

.

.

0.5% Typ Operation to 8 MHz Single 3-V to 5-V Supply Rail-to-Rail Output Swing (AO) No External Load Resistor Required Replacement for TSL1406 Descript

TSL1406R Features

* ee Note 8 All pixels, Ee = 0, See Note 9 S
