TVS2324PT, LTVS Datasheet - ETC

TVS2324PT SURFACE MOUNT DEVICES

SURFACE MOUNT DEVICES FOR HYBRID APPLICATIONS TYPE PLASTIC MATERIAL USED CARRIES UL 94V-0 Marking Zener Voltage VZ (V) @ IZT Min Nom Max Test current Working Peak Reverse Voltage Maximum Reverse Leakage Current Maximum Reverse Current Maximum reverse Voltage @IRSM Volts Volts Volts IZT(mA) Vrwm(V) IR(uA) Ipp(A) Vc(V) Outline No. Equivalent Circuit Diagram 20W SURFACE MOUNT ESD TRANSIENT VOLTAGE SUPPRESSORS LTVSV3VADESPT - 5.3 5.6 5.9 1 3 1 1.6 13 SOT-553 LTVSK3VADESPT - 5.3 5.

LTVS-3VADE.pdf

This datasheet PDF includes multiple part numbers: TVS2324PT, LTVS. Please refer to the document for exact specifications by model.

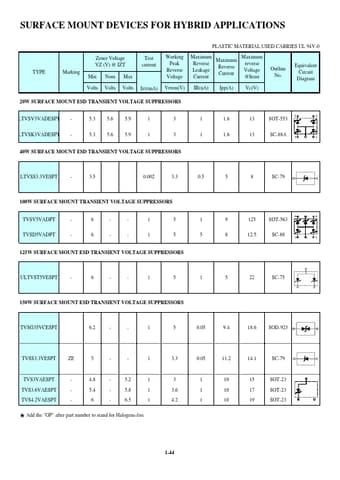

TVS2324PT Datasheet Preview Page 2 TVS2324PT Datasheet Preview Page 3

Datasheet Details

Part number:

TVS2324PT, LTVS

Manufacturer:

ETC

File Size:

58.37 KB

Description:

Surface mount devices.

Note:

This datasheet PDF includes multiple part numbers: TVS2324PT, LTVS.
Please refer to the document for exact specifications by model.
