TVS2200

22-V Flat-Clamp Surge Protection

TVS2200 Features

* 1 Protection Against ±1 kV, 42 Ω IEC 61000-4-5 Surge Test for Industrial Signal Lines

* Max Clamping Voltage of 28.4 V at 40 A of 8/20 µs Surge Current

* Standoff Voltage: 22 V

* Tiny 4 mm2 Footprint

* Survives Over 5,000 Repetitive Strikes of 35 A 8/20 µs Su

TVS2200 General Description

The TVS2200 robustly shunts up to 40 A of IEC 61000-4-5 fault current to protect systems from high power transients or lightning strikes. The device offers a solution to the common industrial signal line EMC requirement to survive up to ±1 kV IEC 610004-5 open circuit voltage coupled through a 42 Ω .

TVS2200 Datasheet (1.67 MB)

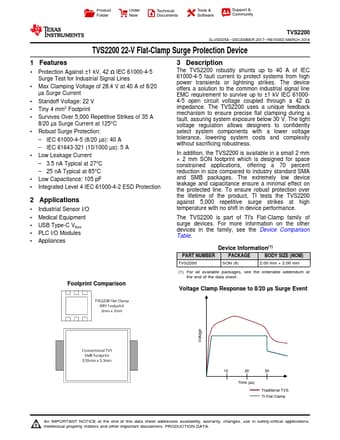

Preview of TVS2200 PDF

Datasheet Details

Part number:

TVS2200

Manufacturer:

Texas Instruments ↗

File Size:

1.67 MB

Description:

22-v flat-clamp surge protection.
Product Folder Order Now Technical Documents Tools & Software Support & Community TVS2200 SLVSED5A

* DECEMBER 2017

* REVISED MARC.
