UC62WV0256 - Low Power CMOS SRAM 32K X8 Bits

The UC62WV0256 by ETC is a Low Power CMOS SRAM 32K X8 Bits. Below is the official datasheet preview.

Datasheet Details

Part number	UC62WV0256
Manufacturer	ETC
File Size	459.33 KB
Description	Low Power CMOS SRAM 32K X8 Bits
Datasheet	UC62WV0256_ETC.pdf

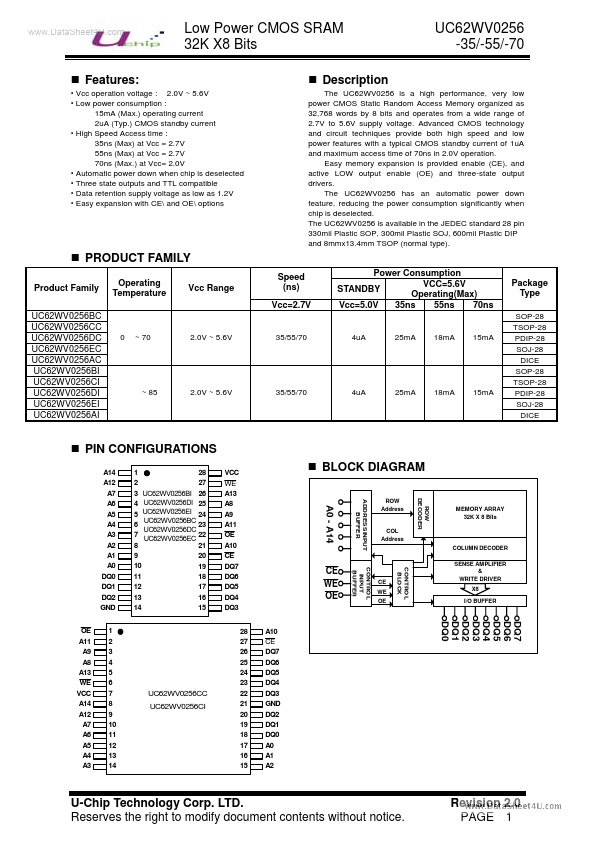

Additional preview pages of the UC62WV0256 datasheet.

UC62WV0256 -35/-55/-70

Vcc operation voltage : 2.0V ~ 5.6V.
Low power consumption : 15mA (Max. ) operating current 2uA (Typ. ) CMOS standby current.
High Speed Access time : 35ns (Max) at Vcc = 2.7V 55ns (Max) at Vcc = 2.7V 70ns (Max. ) at Vcc= 2.0V.
Automatic power down when chip is deselected.
Three state outputs and TTL compatible.
Data retention supply voltage as low as 1.2V.
Easy expansion with CE and OE options The UC62WV0256 is a high performance, v.
