UPB1007K - PLL FREQUENCY SYNTHESIZER

Datasheet Summary

Description

NEC's UPB1007K is a Silicon RFIC designed for low cost GPS receivers.

The IC combines an LNA, followed by a doubleconversion RF/IF downconverter block and a PLL frequency synthesizer on one chip.

📥 Download Datasheet

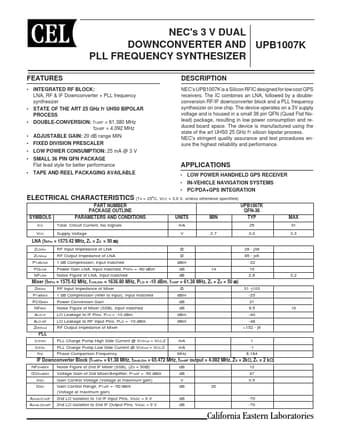

Datasheet preview – UPB1007K

Datasheet Details

Part number UPB1007K
Manufacturer ETC
File Size 235.22 KB
Description PLL FREQUENCY SYNTHESIZER
Datasheet download datasheet UPB1007K Datasheet
Additional preview pages of the UPB1007K datasheet.

📁 Similar Datasheet

  • UPB1004GS - 3V DUAL DOWNCONVERTER AND PLL FREQUENCY SYNTHESIZER (NEC)
  • UPB100505T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • UPB1005GS - REFERENCE FREQUENCY 16.368 MHz/ 2ND IF FREQUENCY 4.092 MHz RF/IF FREQUENCY DOWN-CONVERTER PLL FREQUENCY SYNTHESIZER IC FOR GPS RECEIVER (NEC)
  • UPB1005K - REFERENCE FREQUENCY 16.368 MHz/ 2ND IF FREQUENCY 4.092 MHz RF/IF FREQUENCY DOWN-CONVERTER PLL FREQUENCY SYNTHESIZER IC FOR GPS RECEIVER (NEC)
  • UPB1008K - LOW POWER GPS RF RECEIVER (CEL)
  • UPB1009K - NECs LOW POWER GPS RF RECEIVER BIPOLAR ANALOG + INTEGRATED CIRCUIT (NEC)
  • UPB1502GR - 1.7 GHz/ 2.0 GHz LOW-POWER TWO-MODULUS PRESCALER DIVIDED-BY-64/65/ 128/129 (NEC)
  • UPB1505GR - 3.0 GHz PRESCALER DIVIDED BY 256/ 128/ 64 FOR BS/CS TUNER (NEC)
  • UPB1506GV - 3GHz INPUT DIVIDE BY 256/ 128/ 64 PRESCALER IC FOR ANALOG DBS TUNERS (NEC)
  • UPB1507GV - 3GHz INPUT DIVIDE BY 256/ 128/ 64 PRESCALER IC FOR ANALOG DBS TUNERS (NEC)
Other Datasheets by ETC

    Full PDF Text Transcription

    Click to expand full text
    NEC's 3 V DUAL DOWNCONVERTER AND UPB1007K PLL FREQUENCY SYNTHESIZER FEATURES • INTEGRATED RF BLOCK: LNA, RF & IF Downconverter + PLL frequency synthesizer • STATE OF THE ART 25 GHz fT UHS0 BIPOLAR PROCESS • DOUBLE-CONVERSION: f1stIF = 61.380 MHz f2ndIF = 4.092 MHz • ADJUSTABLE GAIN: 20 dB range MIN • FIXED DIVISION PRESCALER • LOW POWER CONSUMPTION: 25 mA @ 3 V • SMALL 36 PIN QFN PACKAGE Flat lead style for better performance • TAPE AND REEL PACKAGING AVAILABLE DESCRIPTION NEC's UPB1007K is a Silicon RFIC designed for low cost GPS receivers. The IC combines an LNA, followed by a doubleconversion RF/IF downconverter block and a PLL frequency synthesizer on one chip.
