V6118 Datasheet - ETC

2/ 4 and 8 Multiplex LCD Driver

V6118 Features

* nV 6118 2 is 2 way multiplex with 2 rows and 38 columns nV 6118 4 is 4 way multiplex with 4 rows and 36 columns nV 6118 8 is 8 way multiplex with 8 rows and 32 columns nLow dynamic current, 150 µA max. o nLow standby current, 1 µA max. at 25 C nVoltage bias and mux signal generation on chip nDisplay

V6118 General Description

The V 6118 is a universal low multiplex LCD driver. The Version V 6118 2 drives two ways multiplex (two blackplanes) LCD, the version V 6118 4, four way multiplex LCD, and the V 6118 8, eight way multiplex LCD. The display refresh is handled on chip via a 40 x 8 bit RAM which holds the LCD content d.

V6118 Datasheet (465.05 KB)

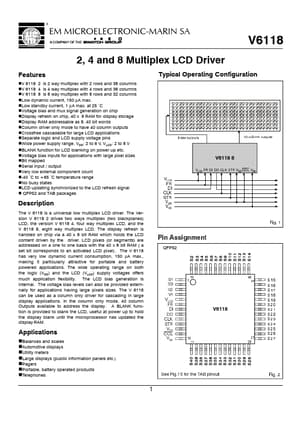

V6118 Datasheet Preview — Preview of V6118 PDF

Datasheet Details

Part number:

V6118

Manufacturer:

ETC

File Size:

465.05 KB

Description:

2/ 4 and 8 multiplex lcd driver.
