VCB1 3.0 or 5.0 Vdc Option Low Cost 1 to 160 MHz Enable Disable Option TTL/CMOS Compatible

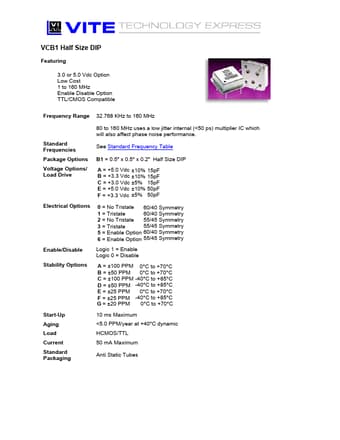

VCB1 Half Size DIP Featuring 3.0 or 5.0 Vdc Option Low Cost 1 to 160 MHz Enable Disable Option TTL/CMOS Compatible Frequency Range 32.768 KHz to 160 MHz 80 to 160 MHz uses a low jitter internal (<50 ps) multiplier IC which will also affect phase noise performance. Standard Frequencies Package Options Voltage Options/ Load Drive See Standard Frequency Table B1 = 0.5" x 0.5" x 0.2" Half Size DIP A = +5.0 Vdc B = +3.3 Vdc C = +3.0 Vdc E = +5.0 Vdc F = +3.3 Vdc ±10% ±10% ±5% ±10% ±5% 15pF 15pF 15pF .
