YD7377 2 x 30W DUAL/QUAD POWER AMPLIFIER

The YD7377 is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guaranABSOLUTE MAXIMUM RATINGS Symbol Vop VS Vpeak IO IO Ptot Tstg, Tj Oper.
 YD7377 2 x 30W DUAL/QUAD POWER AMPLIFIER FOR CAR RADIO HIGH OUTPUT POWER CAPABILITY: 2 x 35W max./4Ω 2 x 30W/4Ω EIAJ 2 x 30W/4Ω EIAJ 2 x 20W/4Ω @14.4V, 1KHz, 10% 4 x 6W/4Ω @14.4V, 1KHz, 10% 4 x 10W/2Ω @14.4V, 1KHz, 10% MINIMUM EXTERNAL COMPONENTS COUNT: NO BOOTSTRAP CAPACITORS NO BOUCHEROT CELLS INTERNALLY FIXED GAIN (26dB BTL) ST-BY FUNCTION (CMOS COMPATIBLE) NOAUDIBLE POPDURING ST-BYOPERATIONS DIAGNOSTICS FACILITY FOR: CLIPPING OUT TO GND S.

YD7377 Features

* reason is shorted, the loudspeaker will not be damaged being thi

YD7377_ETC.pdf

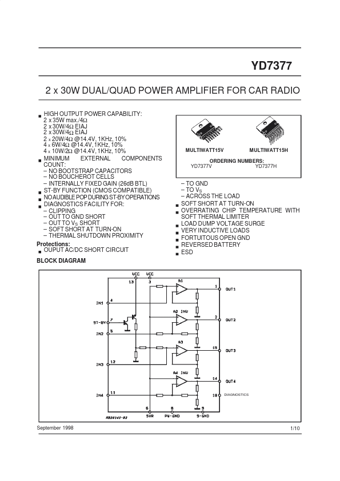

Preview of YD7377 PDF
YD7377 Datasheet Preview Page 2 YD7377 Datasheet Preview Page 3

Datasheet Details

Part number:

YD7377

Manufacturer:

ETC

File Size:

207.87 KB

Description:

2 x 30w dual/quad power amplifier.
