ZMPT107 voltage transformer operating guide

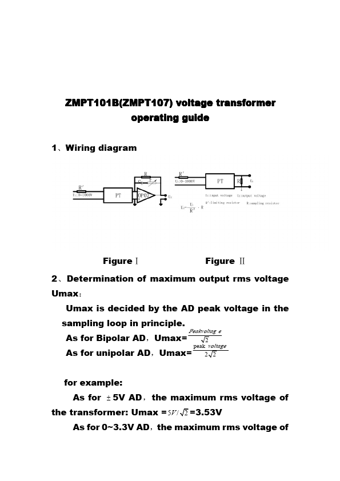

ZMPT101B(ZMPT107) voltage transformer operating guide 1、Wiring diagram FigureⅠ Figure Ⅱ 2、Determination of maximum output rms voltage Umax： Umax is decided by the AD peak voltage in the sampling loop in principle. Peakvoltag e As for Bipolar AD，Umax= 2 peak voltage As for unipolar AD，Umax= 2 2 for example: As for ± 5V AD，the maximum rms voltage of the transformer: Umax = 5V / 2 =3.53V As for 0~3.3V AD，the maximum rms voltage of the transformer:V max = 3.3V / 2 2 =1.16V 3、Determination of i.

ZMPT101B-ETC.pdf

This datasheet PDF includes multiple part numbers: ZMPT107, ZMPT101B. Please refer to the document for exact specifications by model.
