ZMPTZ10B, ZMPTZ3V6B - Silicon Epitaxial Planar Zener Diodes

JGD

📥 Download Datasheet

ZMPTZ10B Datasheet Preview — This datasheet PDF includes multiple part numbers: ZMPTZ10B, ZMPTZ3V6B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZMPTZ10B, ZMPTZ3V6B
Manufacturer	JGD
File Size	191.01 KB
Description	Silicon Epitaxial Planar Zener Diodes
Datasheet	ZMPTZ3V6B-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: ZMPTZ10B, ZMPTZ3V6B. Please refer to the document for exact specifications by model.

ZMPTZ10B Product details

Features

Small surface mounting type.
1 W of power can be obtained despite compact size.
High surge withstand level.
Voltage regulation and voltage limiting.

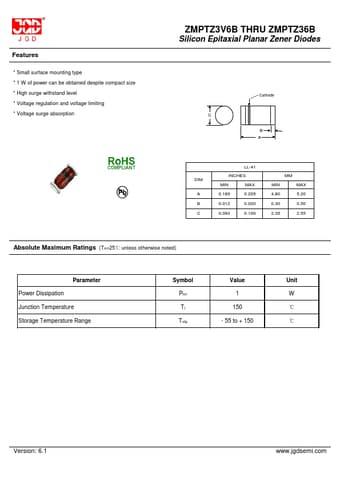

Voltage surge absorption ZMPTZ3V6B THRU ZMPTZ36B Silicon Epitaxial Planar Zener Diodes Cathode C B A LL-41 INCHES MM DIM MIN MAX MIN MAX A 0.189 0.205 4.80 5.20 B 0.012 0.020 0.30 0.50 C 0.093 0.100 2.35 2.55 Absolute Maximum Ratings (TA=25℃ unless otherwise noted) Parameter Power Dissipation Junctio.
