ENV-05F-03 Datasheet - ETEK

ENV-05F-03 - Angular Velocity Sensor

+Supply (input) Ground (common) Sensor Output (output) (1) (2) (3) 3/9 5.

Installation 1) Install the sensor with the bottom face as reference.

2) Install the sensor vertically with respect to the rotating surface.

(90 ± 5 deg) 3) Install the sensor in a location free from vibration.

4) Install t

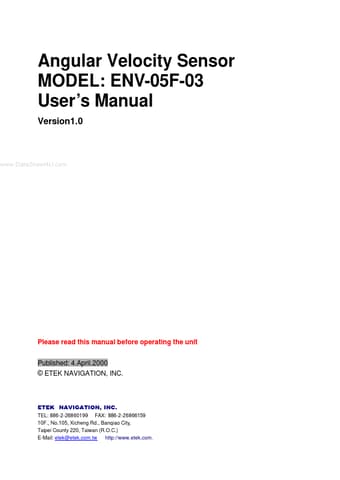

Angular Velocity Sensor MODEL: ENV-05F-03 User’ s Manual Version1.0 www.DataSheet4U.com Please read this manual before operating the unit Published: 4.April.2000 © ETEK NAVIGATION, INC.

ETEK NAVIGATION, INC.

TEL: 886-2-26860199 FAX: 886-2-26866159 10F., No.105, Xicheng Rd., Banqiao City, Taipei County 220, Taiwan (R.O.C.) E-Mail: etek@etek.com.tw http://www.etek.com.

Introduction This angular velocity sensor employs the principle that a Coriolis force results if an angular velocity is applie

ENV-05F-03 Features

* www.DataSheet4U.com - On - Board mount type for easy PCB installation - Low height of 23mm capable of being installed in a one DIN size box 2. Applications - Dead reckoning function in car navigation systems - Satellite antenna positioning for moving object - Movement memory for accident recorders
