ET2010 - ANALOG SIGNAL PROCESSOR

ET2010 Description

ANALOG SIGNAL PROCESSOR with BALANCE TRIM and VARIABLE GAIN ET2010 .
The ET2010 ASP is a monolithic bipolar ASIC designed to transform nanoamp-level differential photocurrents into 1Vpp sinewaves that are suitable for i.

ET2010 Features

* Single supply operation
* Handles Sine/Cosine inputs from DC to 125KHz
* Photodiode input photocurrent range from 100nA
* Adjustable gain
* DC offset adjustable at each output
* Interfaces directly with ET2015, ET2024, or ET2110 Interpolation devices

ET2010 Applications

* where the photocurrents are generated in phased-array photodiodes, the balance adjustments are generally not needed. In these cases, the BAL pins should be connected to GND. In most encoder designs, the LED optical output level changes with su

📥 Download Datasheet

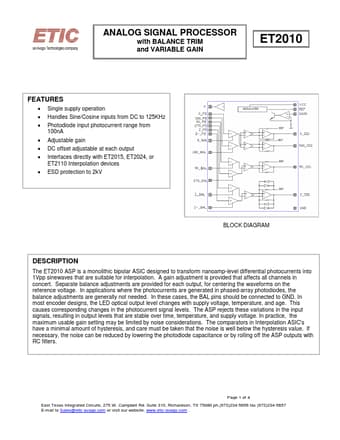

Preview of ET2010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ET2010
Manufacturer
ETIC
File Size
125.66 KB
Datasheet
ET2010-ETIC.pdf
Description
ANALOG SIGNAL PROCESSOR
